Inicio ProductosEquipo contrario del terrorismoUnmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed

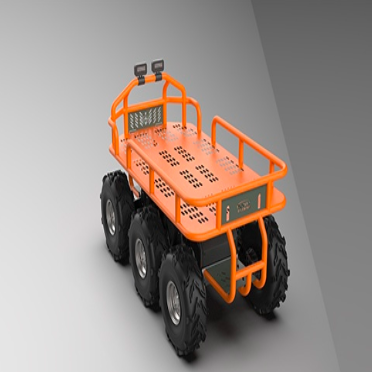

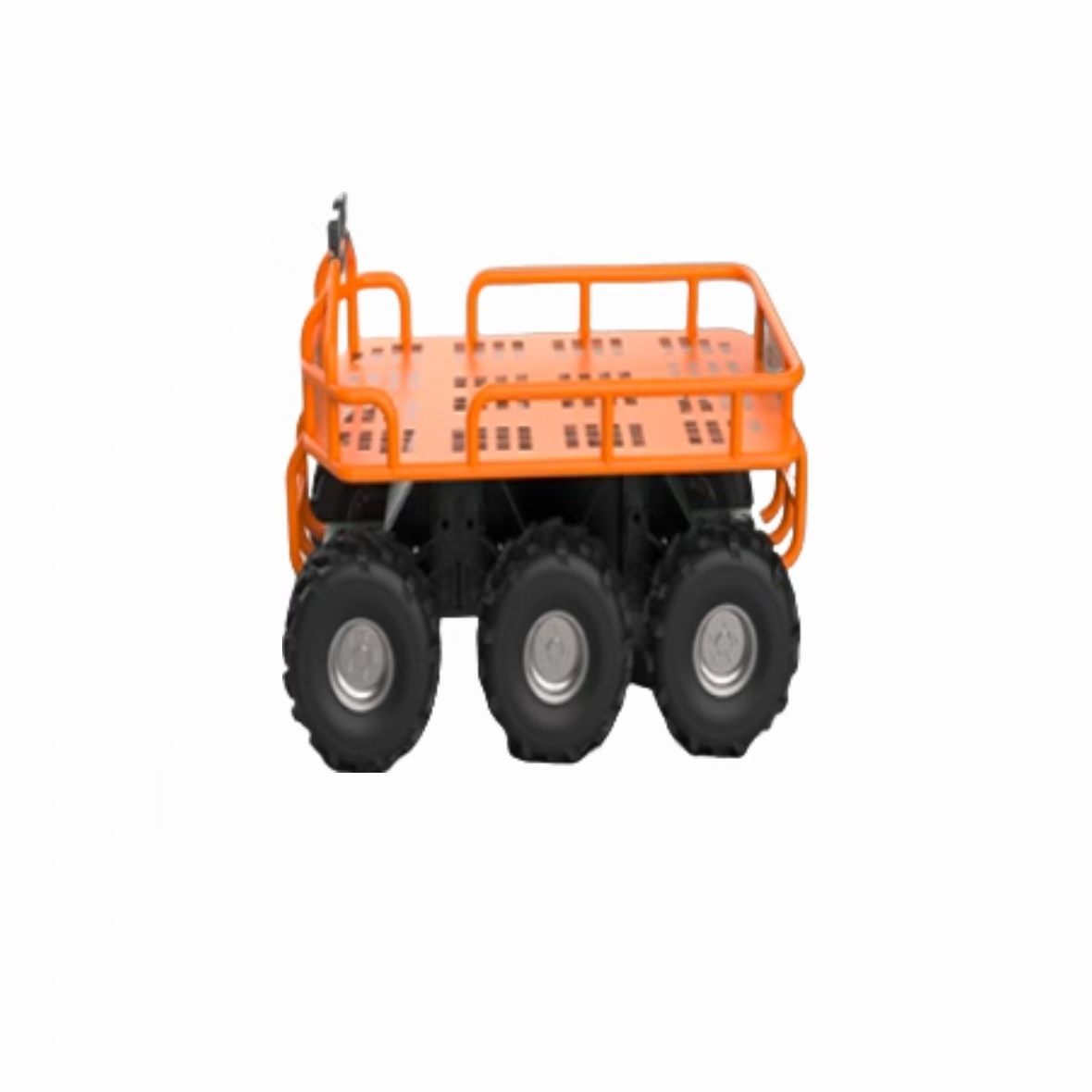

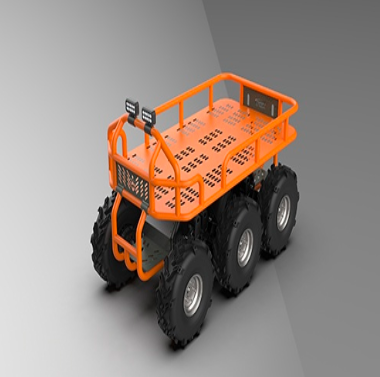

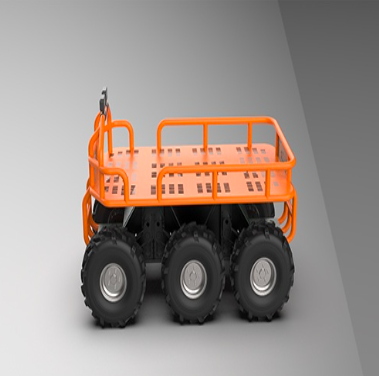

Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed
Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed
Contactar ahora

Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed

Lugar de origen: Porcelana Nombre de la marca: TOPSKY

Información detallada
Giratorio: Brazo delantero 360° par máximo: 50Nm
Peso corporal: 16 kg - ¿ Por qué?: 0-120rpm
Protector para los pies: 450 m/s Dimensiones: Varía según el tipo de equipo, se prefiere el diseño compacto
Tiempo que sopla: 2.5 segundos Tiempo de medición: Menos de 10 segundos
Tasa de falsa alarma: ≤1% Vida: 100 tiroteos
Temperatura de almacenamiento: -45°C ∼65°C; Tamaño del audífono: Las medidas de ensayo se aplicarán en el caso de los vehículos de motor de las categorías M1 y M2.
Diámetro del lanzador: 38mm Brazos: 567.7m/s
Peso: Aproximadamente 29 kg con placas de explosión blindada
Resaltar:

500kg maximum load capacity unmanned off-road platform

,

35° maximum climbing angle rescue escort transportation robot

,

13km/h maximum driving speed 6X6 differential wheeled robot chassis

Descripción de producto

Unmanned Off-Road Platform (Rescue Escort Transportation Robot)
Overview
The 6X6 differential wheeled robot chassis is a high-performance mobile platform engineered to excel in complex outdoor environments and diverse operational requirements. Featuring a unique six-wheel configuration and advanced differential drive technology, this platform serves as an ideal foundation for specialized operation robots, scientific research and exploration robots, and industrial application robots. It delivers a robust and reliable mobility solution for demanding robotic applications.
Application Scenarios
  • Rescue operations for large-scale fires in petroleum and chemical enterprises
  • Firefighting and rescue in collapse-prone areas including tunnels and subways
  • Emergency response in environments with potential explosive gas or liquid leaks
  • Rescue missions in smoke-filled or toxic gas environments
  • Close-proximity firefighting operations where personnel safety is at risk
Technical Specifications
Product Name 6X6 Differential Wheel Robot Chassis
Model TIGER-03
Power System Electric, Lithium Battery
Chassis Dimensions ≤ 2270mm (L) × 1250mm (W) × 845mm (H)
Cabin Dimensions ≤ 1350mm (L) × 350mm (W) × 528mm (H)
Weight 550kg
Maximum Load Capacity 500kg
Motor Power 3kW × 6
Motor Selection 96V High-Precision DC Wheel Hub Motor
Steering Method Differential In-Place Steering
Maximum Driving Speed 13km/h
Maximum Obstacle Height 300mm
Maximum Obstacle Width ≤ 400mm
Ground Clearance 280mm
Maximum Climbing Angle 35°
Surface Treatment Whole Machine Baking Paint
Main Materials Alloy Steel / Carbon Steel Square Tube / Aluminum Alloy
Tire Options Regular Radial Tires / Low-Pressure Tires (Customizable)
